Evaluating a zirconia post and core lab goes far beyond comparing CAD/CAM claims or price points. This guide outlines how to assess lab precision, material reliability, and documentation transparency—so dental professionals and procurement teams can choose partners who consistently deliver predictable, passive-fit restorations with minimal risk.
A high-precision zirconia post and core lab is defined by its ability to deliver restorations with passive fit, marginal adaptation within 20–50 µm, and full traceability of materials and processes. Precision depends on calibrated equipment, experienced technicians, and repeatable QA—not just owning CAD/CAM tools.
Why Zirconia Is Used for Post & Core Applications
Zirconia has become a trusted material for post and core restorations due to its superior biocompatibility, mechanical resilience, and esthetic performance. For both dental professionals and labs, understanding these core benefits helps ensure better collaboration and material selection aligned with case needs.

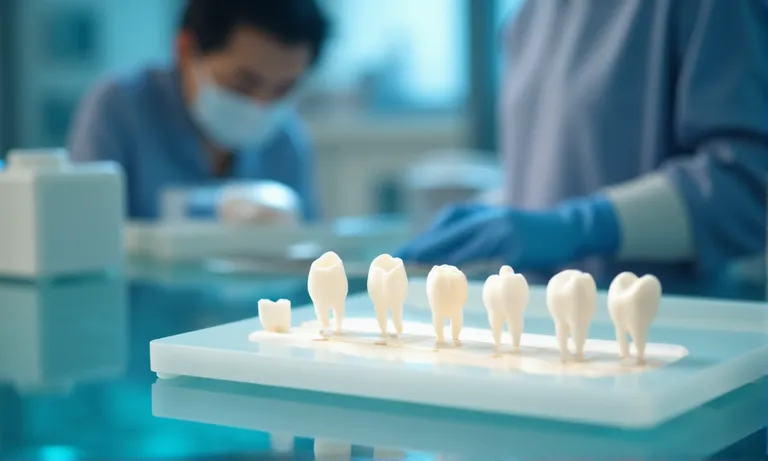

Dental-Lab-Zirconia-Post-Material-Closeup
Biocompatibility and Strength Profile
Zirconia supports both biological compatibility and structural performance—making it suitable for load-bearing restorations where tissue safety is essential.
- High flexural strength between 900–1200 MPa, depending on formulation
- Inert, non-cytotoxic material composition avoids adverse tissue reactions
- Reduced risk of root fracture compared to rigid metal posts in sensitive anatomies
Esthetic Advantage in Anterior Zones
For anterior or visible zones, zirconia is often the material of choice due to its optical properties and shade-matching capabilities.
- Translucent structure allows natural light transmission
- No risk of dark shadowing through gingiva or ceramic crowns
- Harmonizes with high-value shades in esthetic workflows
Non-Metallic, Corrosion-Free Properties
Zirconia is chemically stable and free of corrosion risks, which is especially important for patients with sensitivities or where long-term intraoral consistency is a concern.
- Will not oxidize or leach metal ions over time
- Safe for metal-sensitive patients or those with aesthetic demands
- Maintains shade integrity regardless of oral pH or moisture
✅ Zirconia offers a balance of strength, esthetics, and biocompatibility – TRUE
Its properties make it ideal for both anterior and posterior post and core applications, especially in cases requiring cosmetic sensitivity and reliable mechanical behavior.
❌ Zirconia is only used to improve appearance – FALSE
While esthetics is a strength, zirconia also supports high occlusal loads and long-term structural performance when handled properly by a calibrated lab.
Indications Where Zirconia Posts Offer Optimal Support
Zirconia is not a one-size-fits-all solution. Its success depends on selecting the right clinical cases—where its properties align with the functional and esthetic requirements. From a dental lab perspective, understanding and communicating suitable indications early on helps ensure predictable fit and fewer adjustments.
Dental-Lab-Zirconia-Indication-Check
When Zirconia Posts Are Most Suitable: A Collaborative Checklist
Labs and clinicians often use a shared framework to decide whether zirconia is appropriate. Below is a typical flow used during lab intake:
- Is the case in the esthetic zone (anterior or premolar)?
Zirconia excels where translucency and gingival appearance matter. - Is the root canal relatively straight and round?
Zirconia’s rigidity favors canals with minimal curvature or flare. - Is passive fit acceptable, or is custom interlocking needed?
Zirconia works best with passive adaptation, not aggressive engagement. - Does the patient have a history of metal sensitivity?
Zirconia is inert and metal-free—ideal in these situations. - Is long-term color and biological stability a key concern?
Zirconia maintains color and biocompatibility better than most alternatives.
Esthetic vs Functional Priority: Which Cases Match Best?
| Case Type | Zirconia Suitability | Reasoning |
|---|---|---|
| Upper central incisor with thin biotype | High | Natural light diffusion, no gingival shadowing |
| Lower molar with curved canal | Low | Risk of fracture and poor fit due to canal complexity |
| Anterior post after trauma | High | Esthetic restoration with non-metallic internal structure |
| Pediatric or short-root cases | Low | Zirconia may be too rigid or bulky for constrained anatomy |
Passive Retention vs Custom Fit: Lab Considerations
From a fabrication standpoint, zirconia is ideal when the canal space allows for passive, non-stress seating. In cases where internal retention geometry is needed, labs often recommend switching to cast or fiber posts for better engagement.
- Passive fit = reduced fracture risk and easier seating
- Avoid in ovoid, flared, or thin curved canals
- Labs can flag unsuitable cases at the model scan or design stage
Zirconia posts perform best when esthetics and biological harmony are key drivers, and when the canal geometry allows for passive placement. As a partner lab, we support case evaluation early in the workflow to flag potential fit or fracture risks and suggest alternative options when needed.
What Defines High Precision in Post & Core Fabrication From a Lab Perspective
Precision in post and core fabrication is not abstract—it’s measurable, repeatable, and visible under inspection. From a dental lab’s standpoint, high precision means every unit seats passively, aligns with canal morphology, and bonds predictably. Below, we outline the key quality metrics that define a high-precision outcome.
Dental-Lab-Zirconia-Fit-QA
Marginal Adaptation and Fit Tolerance
Accurate marginal fit reduces the risk of bacterial leakage and restorative failure. Labs achieve this by combining calibrated digital tools with final technician checks.
- Marginal gap should remain within 20–40 µm
- Internal fit tolerance: 30–50 µm, verified pre-sinter
- Manual inspection ensures milling paths match scan detail
- Lab QA must catch undercuts or seating interference before dispatch
Passive Fit to Root Canal Morphology
A passive fit avoids stress during seating and ensures predictable cementation.
- Designed using canal segmentation or precision scans
- Avoids forced insertion or friction lock
- Allows full seating without distortion or post-adjustment
- Requires accurate milling + consistent sintering compensation
Surface Finish for Optimal Bonding
Zirconia’s bondability depends on a controlled surface profile. Over-polishing or unregulated sandblasting can reduce adhesion strength.
| Surface Parameter | Ideal Range | Lab Handling Note |
|---|---|---|
| Surface roughness (Ra) | 0.5–1.2 µm | Too smooth = bond failure, too rough = microcracks |
| Sandblasting particle size | 50 µm Al₂O₃ | Lower pressure reduces risk of weakening core structure |
| Sintered finish integrity | No contamination | Clean environment and handling after sintering |
Consistency Across Batches and Cases
True precision means every case matches the lab’s best output—not just occasional “perfect” units.
- Every technician follows the same verified workflow
- Batch number tracking ensures traceability
- Internal variance audits catch drift across machines or operators
- Partner labs should share reproducibility data if requested
✅ Precision is achieved through controlled, repeatable, and measurable processes – TRUE
It’s not just about one perfect case—precision means every post fits passively, bonds cleanly, and behaves consistently across batches.
❌ Precision means tight friction fit and zero adjustment needed – FALSE
True passive fit is not the same as a tight fit. Friction during seating can create internal stress and compromise long-term success.
What Lab Capabilities Ensure Precision in Zirconia Milling?
Even the best zirconia material can’t deliver clinical value without a lab that understands how to mill it with calibrated precision. From equipment to technician workflow, every variable plays a role in ensuring passive fit, stable bonding, and reproducibility. Here’s how a high-performance lab controls each link in the chain.
Dental-Lab-Zirconia-Milling-Workflow
CAD/CAM System Brand and Calibration Protocols
- Use of 5-axis milling units with proven micron-level repeatability
- Daily calibration using ceramic pin or ball-reference kits
- Milling strategy tuned for narrow substructures, not just full crowns
- Tool wear tracking integrated with CAM software alerts
Sintering Furnace Controls and Shrinkage Management
Shrinkage during sintering can distort fit if not properly accounted for. Labs must fine-tune every cycle:
- Material-specific shrinkage factor input into design stage
- Ramp-up control to avoid internal stress cracking
- Hold phase duration to stabilize zirconia microstructure
- Cooling curve validation to preserve dimensional integrity
Labs that don’t adjust these per material batch risk producing out-of-spec restorations—even with good design files.
Scanner Resolution and Internal QA Systems
Scanner precision impacts everything that follows. High-resolution data means better design decisions and cleaner fit outcomes.
- ≥20 µm resolution preferred for post-core applications
- Use of anti-reflective powder or die sprays for narrow canals
- QA checkpoints at scan-in, post-milling, and final fit
- Lab logs must track deviation causes, not just results
Technician Experience with Sub-Structure Restorations
No equipment can replace the judgment of an experienced hand—especially with challenging post anatomies.
- Technicians review scan detail before approving CAM path
- Manual “seat-check” is often done before sintering
- Experienced labs assign post/core cases to a senior substructure specialist
- Communication loop between CAD designer and milling tech is essential
✅ Precision requires both technology and technician oversight – TRUE
Equipment alone is not enough. Without technician feedback loops and calibration discipline, even premium systems can produce unpredictable outcomes.
❌ High-end machines automatically guarantee passive fit – FALSE
Without human input, real-time adjustment, and case-by-case refinement, technology alone cannot deliver true lab-grade precision.
What Documentation Should Labs Provide?
For clinics, partner labs, or distributors working with zirconia post and core cases, documentation isn’t just paperwork—it’s operational proof. From material traceability to quality control protocols, documentation helps verify consistency, manage compliance, and reduce risk across restorations.
Dental-Lab-Documentation-Zirconia-Traceability
CE or FDA Certification of Raw Zirconia Blocks
Labs working internationally should provide formal documentation of zirconia source and certification.
- CE or FDA approval for zirconia brands in use
- Batch-specific lot numbers tied to raw material
- Documentation aligned with regional regulatory needs
- Should match what appears on shipping and customs forms
Fit Verification Protocols and QA Logs
A high-precision lab documents every step between design and delivery—especially for post and core seating.
- Internal seat-check protocol pre-sintering
- QA logs tied to technician, machine, and zirconia lot
- Pre-delivery visual/photo confirmation available on request
- Deviations tracked and stored for internal QA audits
Technical Data Sheets and Lot Number Traceability
Standard for labs operating at high levels, these documents link materials to technical outcomes and ensure repeatability.
| Document Type | Why It Matters |
|---|---|
| Technical Data Sheet | Confirms strength, translucency, sintering temperature |
| Lot Number Traceability | Links each unit to material origin and batch |
| QA Sign-Off Record | Shows which technician handled each step |
| Safety & Handling Sheet | Ensures regional compliance and safe handling protocols |
Sample Cases and Before/After Fit Reports
Reputable labs don’t just claim quality—they show it through real examples.
- Before-and-after seating photos for verification
- Internal scan overlays to visualize marginal adaptation
- Optional sample portfolio upon request for new clients
- Fit reports especially valuable in sensitive anterior or esthetic cases
Documentation shows whether a lab is operating at a consistent, verifiable level. We provide all clients and partners with access to material certifications, fit verification workflows, and post-delivery QA summaries.
Request a sample case pack or documentation kit to evaluate how our zirconia post and core quality holds up—technically, visually, and traceably—before you commit to a trial case.
How to Spot Warning Signs of Inconsistent Lab Workflows
Even with good materials and equipment, workflow inconsistency can undermine final fit and restoration success. From a lab’s perspective, these issues are often avoidable—and visible. Here are the most common signs that a lab may lack the precision, traceability, or communication needed for high-quality post and core fabrication.
Dental-Lab-Workflow-Risks-Warning
Lack of Fit Testing or Consistent Adjustments Required
- High adjustment rates = low pre-delivery verification
- Repeated friction seating or pressure fit = incorrect passive design
- No seating mock-up performed at lab stage = higher chairside risk
No Case Photography or QC Feedback
- Lack of visual documentation means no traceability
- Fit quality can’t be reviewed if no scan overlays are archived
- No technician comments = no accountability or design logic visibility
Generic Material Use Without Certification
- “Zirconia” without brand or batch = red flag
- No CE/FDA certificates = potential compliance problems for importers
- Generic blanks = unpredictable sintering behavior, inconsistent results
Poor Communication or Delayed Turnarounds
- Lack of case clarification increases risk of misinterpretation
- No clear technician contact = difficult troubleshooting
- Delays without proactive notice = underlying workflow or staffing gaps
✅ Recurring fit problems, no documentation, or vague material info signal workflow risk – TRUE
These warning signs suggest process gaps that can lead to inconsistent quality, patient dissatisfaction, and repeat adjustments.
❌ If the case fits eventually, the lab process must be fine – FALSE
A successful outcome does not always reflect a strong process. Labs without documentation or QA structure are harder to rely on long-term—even if some cases appear acceptable.
Comparing Lab Proposals: What to Look For Beyond Price
Choosing a lab for zirconia post and core work is not just a cost decision—it’s a long-term collaboration choice. While pricing matters, the real value lies in how a lab ensures fit quality, communication, and documentation. Below is a practical evaluation framework used by clinics, DSO groups, and partner labs.
ALT: Dental-Lab-Proposal-Comparison-Checklist
Prompt: Realistic scene showing a dental clinic procurement lead reviewing two lab proposals side-by-side, with highlighted notes, post-core samples, and QA documents on table, background includes digital screen showing CAD/CAM designs
Step-by-Step: How to Evaluate Lab Proposals Effectively
- Request clear pricing breakdowns with service tiers
Understand whether prices include verification steps, documentation, and certified materials—or just base milling. - Ask for representative sample cases with passive fit data
Real photos, scan overlays, or technician reports show more than polished marketing. - Check if timelines scale with case complexity
Faster isn’t better if it skips seat-checks or cuts sintering accuracy. - Verify technician team structure and access points
Can you reach a dedicated tech for feedback, or is communication filtered through sales? - Look for traceability, not just “CAD/CAM” claims
Labs with lot numbers, technician logs, and documented fit verification reduce risk.
Comparison Table: Beyond Pricing Claims
| Evaluation Area | Reliable Lab Partner | Risk-Prone Lab |
|---|---|---|
| Documentation & Fit Records | Full QA logs, photos, traceable batches | Minimal or none |
| Turnaround Logic | Scales with complexity and QA checkpoints | Fixed delivery window, no adjustment time |
| Communication Structure | Direct contact with lead technician | Sales-only or delayed technical replies |
| Transparency in Materials | CE/FDA-certified zirconia, declared lot | Generic blanks, no certification |
✅ Strong lab proposals include clear process steps, transparency, and proof of consistency – TRUE
These elements show a lab understands its own workflow, values quality, and is confident enough to prove it before collaboration begins.
❌ A CAD/CAM label and low quote are enough to ensure precision – FALSE
Without supporting documentation, communication channels, or fit verification, even the best-looking offer may result in inconsistent or subpar outcomes.
Conclusion：
Choosing the right zirconia post and core lab means looking at the full picture: case suitability, technical precision, process visibility, and lab accountability.
- Zirconia advantages include strength, esthetics, and biocompatibility for both anterior and posterior restorations
- Case selection guidance helps determine when zirconia posts align with canal anatomy and patient demands
- Precision definition focuses on marginal fit, surface finish, and consistent passive adaptation
- Lab capabilities cover equipment accuracy, calibration protocols, and experienced technician workflows
- Lab documentation ensures traceability, regulatory compliance, and quality assurance through every case
- Low-quality lab warnings include poor fit, missing certifications, inconsistent turnaround, and lack of visual QA
- Lab comparison strategy prioritizes process clarity, fit evidence, and technician access over pricing alone
Contact Raytops Dental Lab to request sample fit reports, documentation kits, or schedule a case review with our precision team.
